产 品 说 明 |

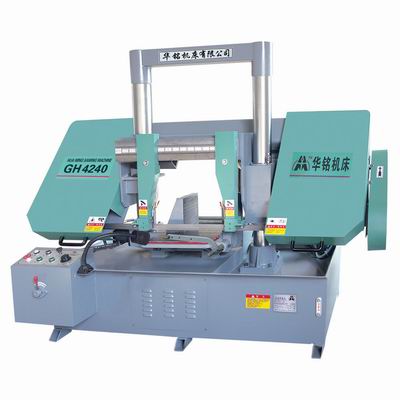

| 。gh4240龙门卧式金属带锯床 主要特点 双立柱龙门卧式金属带锯床，主要用于锯切各种大型材料。具备高效率、高精度、省料节能等优点。※ 双立柱龙门式结构，稳定性高，刚性强※ 切削速度液压控制，无级调速※ 工件夹紧液压夹紧，操作方便※ 可定制三向夹紧装置 main features double―column horizontal
band sawing machine mainly used for all kinds of large―scale material sawing with high effciency high precision save
material saving energy etc※ double column structure
vertical lifting high stability※ cutting speed adopts hydraulic control,stepless speed regulation※ the clamping of workpiece
adopts hydraulic clamping,※ can make 3 options about hydraulic
clamping device 产品型号 model no gh4240切削范围（mm）cutting capacity400-400×400锯带规格（mm）blade size5000×41×1.3锯带线速（mm/min）blade speed27、45、69工作夹紧方式clamping type液压主电机功率（kw）main motor power4液压电机功率motor main0.75冷却泵功率coolant pump0.125外形尺寸（mm）overall dimension2500×1300×1600 |
