产 品 说 明 |

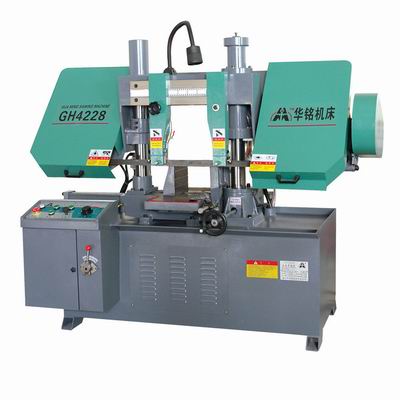

| 主要特点※双立柱结构，垂直升降，稳定性高※切削速度液压控制，无级调速※工件夹紧液压夹紧，操作方便※可定制三向液压夹紧装置 main features※double column
structure vertical lifting high stability.※cutting speed adopts hydraulic
control,stepless speed regulation※the
clamping of workpiece adopts hydraulic clamping, easy control※can make 3 options
about hydraulic clamping device 产品型号 model no gh4228切削范围（mm）cutting capacity280-280×280锯带规格（mm）blade size3505×34×1.1锯带线速（mm/min）blade speed27、45、69工作夹紧方式clamping type液压主电机功率（kw）main motor power2.2液压电机功率motor main0.55冷却泵功率coolant pump0.04外形尺寸（mm）overall dimension1860×900×1400 |
