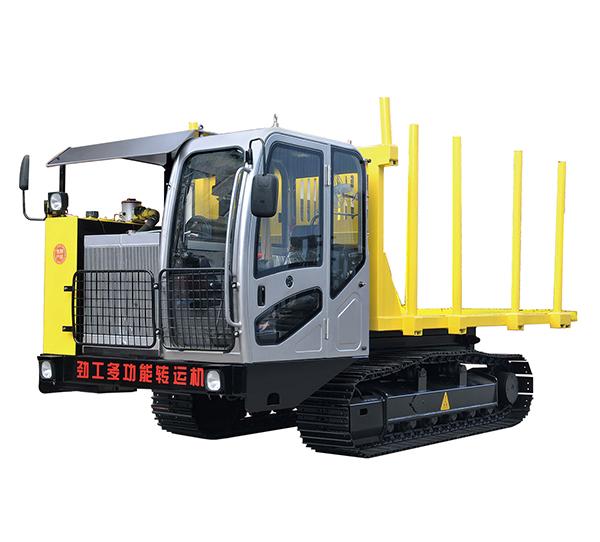

| 转运机技术参数: |
| 外型尺寸dimensions |
| 总长*总宽*总高 (length*width*height)travel position | 4980*2000*2500mm |
| 货箱总长*总宽 container overall length * overall width | 3400*1900mm |
| 货箱平台高度 container height | 1070mm |
| 货箱倾斜离地最高高度 container lifting height | 3500mm |
| 货箱倾斜离地最低高度 ground clearance of container | 240mm |
| 货箱可倾斜最大角度 max. slop angle of container | 40° |
| 驾驶平台离地高度 ground clearance of cab | 820mm |
| 轴距 wheel base | 2570mm |
| 轨距 track gauge | 1470mm |
| 履带宽度 crawler width | 450mm |
| 履带长度 crawler length | 3270mm |
| 最小离地间隙 min. ground clearance | 510mm |
| 技术性能参数tech performance and specification |
| 整机重量 machine weight | 6000kg |
| 额定载重质量 rated load | 8000kg |
| 发动机型号 engine model | 4m3z-22 |
| 额定功率/转速 rated power/rpm | 85kw/2200r |
| 液压系统流量 hydraulic system flow | 270l/min |
| 液压系统工作压力 hydraulic system operating pressure | 28mpa |
| 行驶速度 travel speed | 3/6.5km/h |
| 最大牵引力 max. hauling force | 88kn |
| 爬坡度 gradeability | 70%/35° |
| 综合工况燃油量 fqt fuel quantity | ≧8l/h |
| 燃油箱容量 fuel tank capacity | 200l |
| 液压油箱容量 hydraulic oil tank capacity | 250l |
