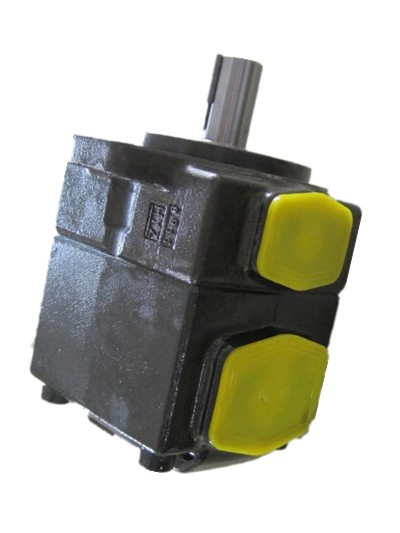

pv2r叶片泵*压力14~21，排量6~115供选是专为低噪音要求高的工况设计的高性能液压泵，由于工作稳定性高，脉动小噪音低，且该泵主要内脏部件采用了组装式结构，维修简便，用途非常广泛，常用于塑料机，压铸机等各类机床机械。
结构剖析:
型号说明:
具体参数:
| 型号 | 排量ml/r | 最高压力mpa | 转速r/min | 驱动功率kw | |||
| 抗磨液压油 | 普通液压油 | 磷酸酯液压油 | 抗磨水乙二醇 | ||||
| pv2r1-6 | 6 | 17.5 | 16 | 16 | 16 | 600~1800 | 3.3/4.4 |
| pv2r1-8 | 8 | 4.0/5.4 | |||||
| pv2r1-10 | 10 | 4.3/5.9 | |||||
| pv2r1-12 | 12 | 5.1/7.0 | |||||
| pv2r1-14 | 14 | 5.4/7.5 | |||||
| pv2r1-17 | 17 | 6.2/8.8 | |||||
| pv2r1-19 | 19 | 6.8/9.7 | |||||
| pv2r1-23 | 23 | 8.0/11.4 | |||||
| pv2r1-25 | 25 | 11.5 | |||||
| pv2r1-28 | 28 | 12.6 | |||||
| pv2r1-31 | 31 | 16 | 14.5 | ||||
| pv2r2-26 | 26 | 17.5 | 14 | 14 | 10.7/14.7 | ||
| pv2r2-33 | 33 | 12.2/17.5 | |||||
| pv2r2-41 | 41 | 14.5/20.6 | |||||
| pv2r2-47 | 47 | 15.9/22.7 | |||||
| pv2r2-53 | 53 | 20.1/28.4 | |||||
| pv2r2-59 | 59 | 11.5 | |||||
| pv2r2-65 | 65 | 12.6 | |||||
| pv2r2-75 | 75 | 14.5 | |||||
| pv2r3-52 | 52 | 20.1/28.4 | |||||
| pv2r3-60 | 60 | 21.7/30.5 | |||||
| pv2r3-66 | 66 | 24.6/34.2 | |||||
| pv2r3-76 | 76 | 27.3/38.1 | |||||
| pv2r3-85 | 85 | 28/42 | |||||
| pv2r3-94 | 94 | 31.5/45 | |||||
| pv2r3-116 | 116 | 38.0/53.9 | |||||
| pv2r3-125 | 125 | 40.1/55.9 | |||||
| pv2r3-136 | 136 | 44.4/64.8 | |||||
| pv2r3-153 | 153 | 49.0/70.5 | |||||
| pv2r4-136 | 136 | 44.4/64.8 | |||||
| pv2r4-153 | 153 | 49.0/70.5 | |||||
| pv2r4-184 | 184 | 59.1/86.4 | |||||
| pv2r4-200 | 200 | 63.7/93.0 | |||||
| pv2r4-237 | 237 | 72.8/107 | |||||
规格尺寸:
| 型号 | a1 | a2 | b1 | b2 | m1 | m2 | p1 | p2 | d | φ | d | b |
| pv2r1 | 26.2 | 17.5 | 52.4 | 38.1 | 10 | 8 | φ26 | φ13 | φ82.55 | 11 | φ15.88 | 3.97 |
| pv2r2 | 30.2 | 22.2 | 58.7 | 47.6 | 10 | 10 | φ32 | φ19 | φ101.6 | 13.5 | φ22.23 | 6.35 |
| pv2r3 | 42.9 | 30.2 | 77.8 | 58.7 | 12 | 10 | φ51 | φ28 | φ127 | 17.5 | φ31.75 | 7.94 |
| pv2r4 | 61.9 | 35.7 | 106.4 | 69.9 | 16 | 12 | φ76 | φ36 | φ152.4 | 21.5 | φ38..1 | 9.53 |
| 型号 | h | e | l | l1 | l2 | c1 | c2 | h1 | h2 | k | a | w |
| pv2r1 | 17.68 | 25 | 184 | 41 | 50 | 25 | 56 | 60 | 114 | 106 | 130 | 7 |
| pv2r2 | 25.01 | 32 | 212 | 47 | 59 | 28 | 80 | 70 | 135 | 146 | 174 | 9 |
| pv2r3 | 35.32 | 40 | 259 | 63 | 75 | 37 | 90 | 90 | 170 | 181 | 213 | 9 |
| pv2r4 | 42.36 | 56 | 354 | 76 | 92 | 43 | 110 | 115 | 217 | 228.6 | 273 | 13 |
