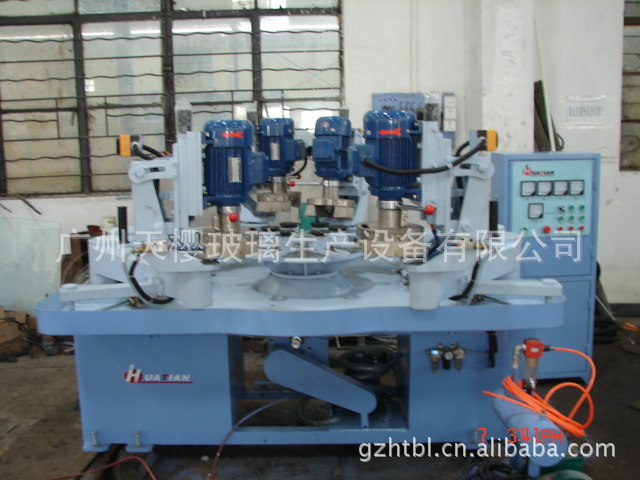

机器简介：
    本机采用真空吸盘装夹玻璃、机械无级调速，适用于加工各种圆形及接近正方形的平板玻璃的周边加工，特别是圆玻璃的周边及斜边加工、粗精磨及抛光可一次完成。（与单臂机相比，可减少精磨、抛光再换磨轮之麻烦，提高加工速度。）

技术参数：

1.加工玻璃厚度：4 ~20mm

2.斜边角度：0°~20°

3.加工玻璃尺寸：max: 1500 x 1500mm   min: 400 x 400mm

4.总功率：8kw

5.重量：2000 kg

6.外形尺寸：2000(l) x 1500(w) x 1500(h)mm



 detailed offer description



this machine adopts vacuum suction tray glass clamping and stepless regulator, suitable for grinding and beveling peripheral of circular or ellipse flat glass. rough grinding, fine grinding and polishing can be completed in one process. (compared with single-arm machine, it eliminates the trouble of fine grinding, polishing wheel changing and increasing processing speed.)

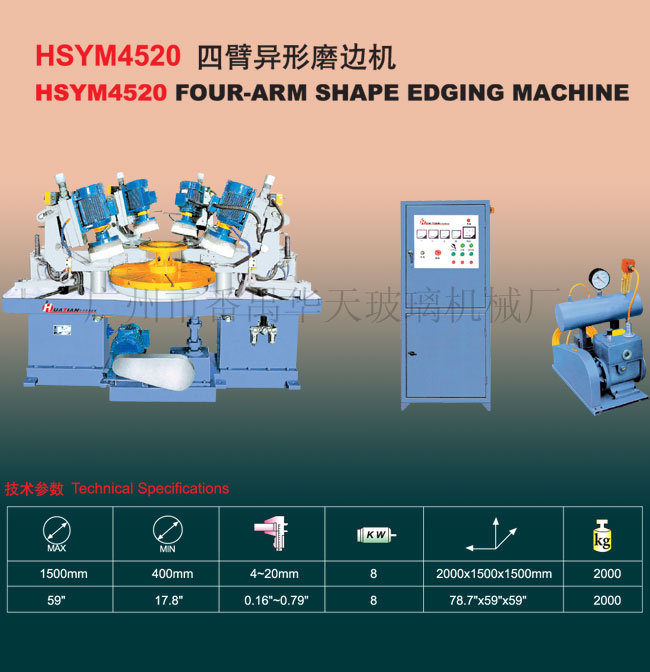

technical specifications:

1. glass thickness:4 ~ 20mm

2. bevel angle:0°~ 20°

3. diameter: max:1500 x 1500mm?? min: 400 x 400mm

4. power:8kw

5. weight:2000 kg

6. size:2000 x 1500 x 1500mm
