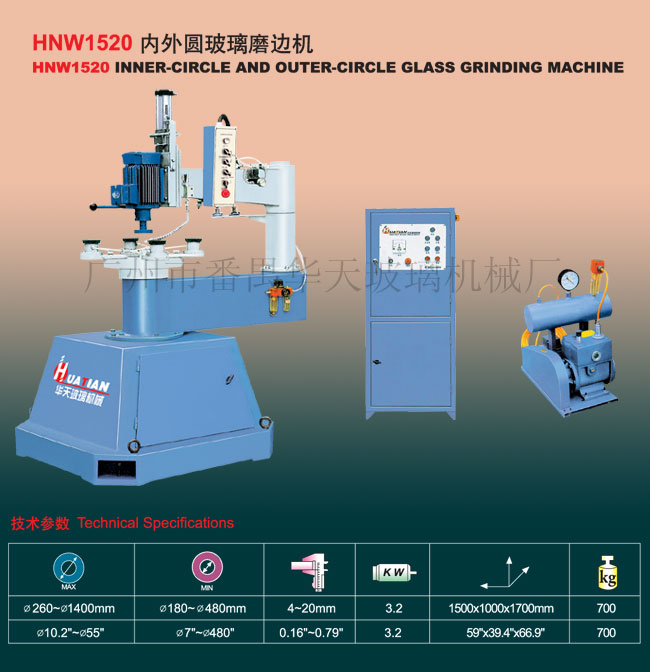

机器简介：
    本机适用于平板玻璃的内圆（孔）、外周边的磨削加工。机床采用气动系统升降磨座，利用气缸对加工玻璃进行半自动磨削。机床工作台采用真空装夹玻璃，并以调速马达无级调节工作台转速，操作十分简便，效率高，最适合于批量产品生产。



技术参数：

1. 玻璃回转直径：ø260 ~ ø 1400 mm
2. 磨削内圆直径：ø180 ~ ø 480 mm
3. 加工厚度：4 ~20mm
4. 磨轮直径：ø50 ~ ø 150 mm
5. 总功率：3.2kw
6. 重量：700 kg
7. 外形尺寸：1500(l) x 1000(w) x1700(h)mm



detailed offer description

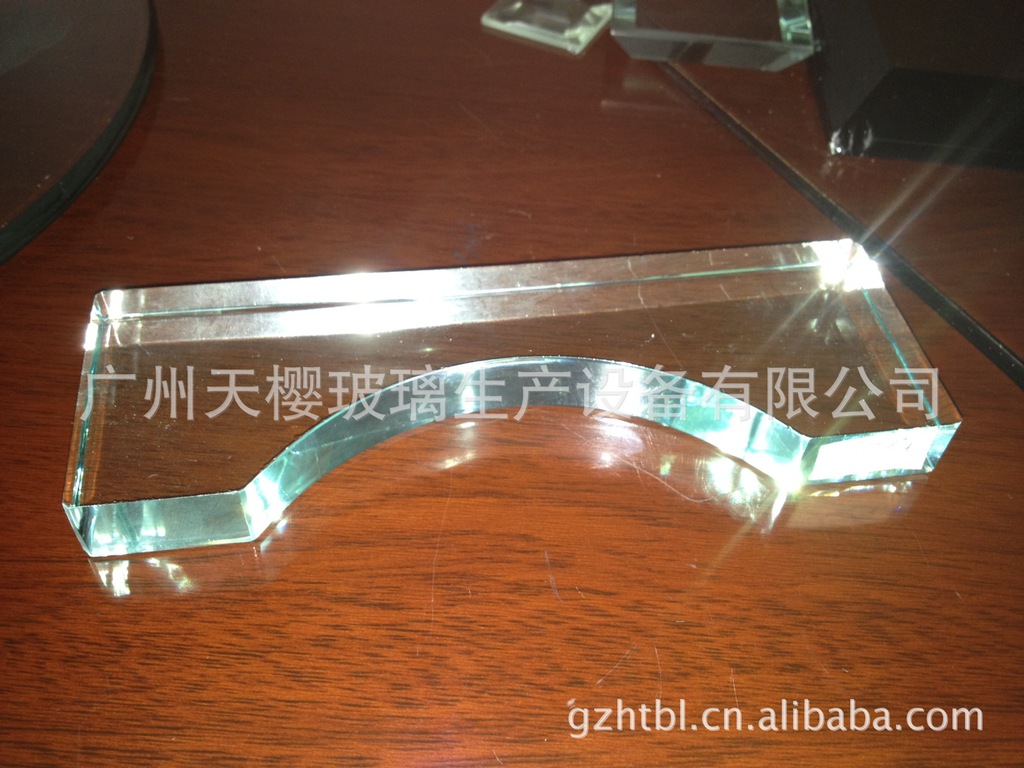

this machine is suitable for grinding inner circle (hole) and outer edge of flat glass. the machine adopts pneumatic up-and-down system grinding stand and gas tank for semi-automatic glass grinding. the worktable uses vacuum glass clamping and its speed can be adjusted by stepless regulating motor. using different shape grinding wheels can obtain the straight edge, pencil edge or og edge of glass.



technical specifications:

1. outer circle diameter: 260 ~ 1400 mm

2. inner circle diameter: 180 ~ 480 mm

3. glass thickness: 4 ~ 20mm

4. grinding wheel diameter: 50 ~ 150 mm

5. power: 3.2kw

6. weight: 700 kg
