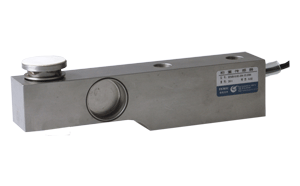

◆合金钢材料，单剪切梁结构。
◆防护等级ip68
◆适用于电子平台秤、料斗秤等各类电子称重设备。
推荐选择型号：
|
1.0t-30t
|
c3
|
hm8-c3-xxt-6b6
|
技术指标
|
额定载荷
|
t
|
1/2/2.5/3/5/10/15/20/25/30
|
|
精度
|
|
c3
|
|
最大检定分度数
|
n max
|
3000
|
|
最小检定分度值
|
v min
|
emax/10000
|
|
综合误差
|
(%fs)
|
≤±0.020
|
|
蠕变
|
(%fs/30min)
|
≤±0.016
|
|
温度对输出灵敏度的影响
|
(%fs/10℃)
|
≤±0.011
|
|
温度对零点输出的影响
|
(%fs/10℃)
|
≤±0.015
|
|
输出灵敏度
|
(mv/v)
|
2.0±0.002
|
|
输入阻抗
|
(ω)
|
400±10
|
|
输出阻抗
|
(ω)
|
351±2
|
|
绝缘阻抗
|
(mω)
|
≥5000(100vdc)
|
|
零点输出
|
(%fs)
|
≤±1.0
|
|
温度补偿范围
|
(℃)
|
-10～+40
|
|
允许使用温度范围
|
(℃)
|
-35～+65
|
|
推荐激励电压
|
(v)
|
5～12(dc)
|
|
最大激励电压
|
(v)
|
18(dc)
|
|
安全过载范围
|
(%fs)
|
150
|
|
极限过载范围
|
(%fs)
|
300
|
|
atex等级
|
|
ii 1g ex ia ii 1c t4
|
ii 1d ex iad20 t73℃
|
ii 3g ex nl ii c t4
|
外形尺寸mm(inch)
|
尺寸
|
h
|
h1
|
h2
|
h3
|
d
|
d
|
w
|
l
|
l1
|
l2
|
l3
|
l4
|
l5
|
l6
|
|
1～2t
|
57.9
(2.28)
|
43
(1.69)
|
37
(1.47)
|
5
(0.2)
|
35
(1.38)
|
13
(0.51)
|
37
(1.47)
|
203
(7.99)
|
95
(3.74)
|
22
(0.87)
|
98
(3.86)
|
64
(2.52)
|
/
|
/
|
|
2.5t
|
57.9
(2.28)
|
43
(1.69)
|
37
(1.47)
|
5
(0.2)
|
35
(1.38)
|
15
(0.59)
|
37
(1.47)
|
203
(7.99)
|
95
(3.74)
|
22
(0.87)
|
98
(3.86)
|
64
(2.52)
|
/
|
/
|
|
3t
|
62.9
(2.48)
|
43
(1.69)
|
37
(1.47)
|
5
(0.2)
|
35
(1.38)
|
15
(0.59)
|
37
(1.47)
|
203
(7.99)
|
95
(3.74)
|
22
(0.87)
|
98
(3.86)
|
64
(2.52)
|
/
|
/
|
|
5t
|
78.7
(3.1)
|
52
(2.05)
|
48
(1.89)
|
8
(0.31)
|
42
(1.65)
|
21
(0.83)
|
48
(1.89)
|
235
(9.25)
|
110
(4.33)
|
22
(0.87)
|
124
(4.88)
|
66
(2.6)
|
/
|
/
|
|
10t,15t
|
127.7
(5.03)
|
67
(2.64)
|
60
(2.36)
|
12
(0.47)
|
57
(2.24)
|
28
(1.10)
|
60
(2.36)
|
279
(10.98)
|
133
(5.24)
|
32
(1.26)
|
140
(5.51)
|
82
(3.23)
|
/
|
/
|
|
20t,25t
|
143.5
(5.65)
|
82.5
(3.25)
|
70
(2.76)
|
12
(0.47)
|
70
(2.76)
|
34
(1.34)
|
70
(2.76)
|
318
(12.52)
|
153
(6.02)
|
38
(1.5)
|
159
(6.26)
|
89
(3.5)
|
/
|
/
|
|
30t
|
174
(6.85)
|
115
(4.53)
|
90
(3.54)
|
18
(0.71)
|
70
(2.76)
|
26
(1.02)
|
96
(3.78)
|
374
(14.72)
|
189
(7.44)
|
44.5
(1.75)
|
181
(7.13)
|
76
(2.99)
|
51
(2.01)
|
46
(1.81)
|
|
