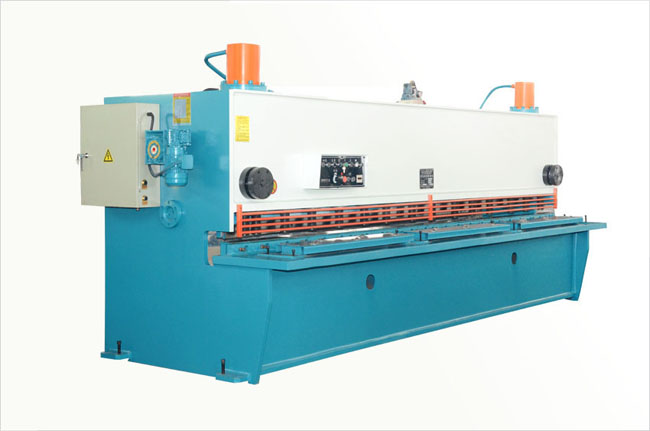

QC11Y液压闸式剪板机技术参数：
型号 | 可剪板厚 | 可剪板宽 | 行程次数 | 后挡料行程 | 剪切角度 | 喉口深度(mm) | 主电机 | 外形尺寸(L×W×H)(mm) |
6×2500 | 6 | 2500 | 20-40 | 750 | 0.5-1.5 | 80 | 7.5 | 3000×2075×1920 |
6×3200 | 6 | 3200 | 16-45 | 750 | 0.5-1.5 | 80 | 7.5 | 3130×2075×1970 |
6×4000 | 6 | 4000 | 14-45 | 750 | 0.5-1.5 | 80 | 7.5 | 4530×2075×2000 |
6×5000 | 6 | 5000 | 11-40 | 750 | 0.5-1.5 | 80 | 7.5 | 6430×2075×2520 |
6×6000 | 6 | 6000 | 9-36 | 750 | 0.5-1.5 | 80 | 7.5 | 7530×2075×2210 |
7×7000 | 7 | 7000 | 7-28 | 750 | 0.5-1.5 | 80 | 7.5 | 7530×2075×2600 |
6×2500 | 8 | 2500 | 20-45 | 750 | 0.5-1.5 | 80 | 7.5 | 3040×2075×1920 |
6×3200 | 8 | 3200 | 16-45 | 750 | 0.5-1.5 | 80 | 7.5 | 3740×2075×1920 |
12×2500 | 12 | 2500 | 12-35 | 1000 | 0.5-2 | 80 | 15 | 3110×2575×2210 |
12×3200 | 12 | 3200 | 7-35 | 1000 | 0.5-2 | 80 | 15 | 3810×2575×2500 |
12×4000 | 12 | 4000 | 9-35 | 1000 | 0.5-2 | 80 | 15 | 4610×2575×2500 |
16×2500 | 16 | 2500 | 16-40 | 1000 | 0.5-2.6 | 80 | 22 | 3130×2655×2200 |
16×4000 | 16 | 4000 | 12-40 | 1000 | 0.5-2.5 | 80 | 20 | 4430×2655×2570 |
20×2500 | 20 | 2500 | 16-40 | 1000 | 0.5-2.6 | 80 | 20 | 3100×2600×2300 |
20×4000 | 20 | 4000 | 12-40 | 1000 | 0.5-5.5 | 80 | 30 | 4600×2055×2720 |
25×3200 | 25 | 3200 | 8-20 | 1000 | 0.5-3.5 | 80 | 37 | 3610×2000×3300 |
