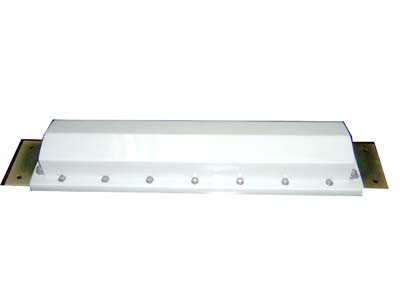

application: suitable for railway, vswr at good performance, rfid system, closed processing, anti-water ability.
特点：广角设计，覆盖的范围广，结构的设计，提升振动和抗冲击性，直接接地。
characteristic: wide angle design. cover a wider range of area. structure design, enhancement of vibration and impact resistance. directly grounded.
|
specifications | ||
|
型号 model |
yctcl10 |
|
|
频率 frequency range (mhz) |
902~928 |
|
|
带宽 band width (mhz) |
26 |
|
|
增益 gain(dbi) |
10 | |
|
垂直面半功率角 beam width e-plane(°) |
120 | |
|
水平面半功率角 beam width h-plane(°) |
30 | |
|
驻波比 vswr |
≤1.5 | |
|
极化 polarization |
垂直/水平 vertical/ horizontal | |
|
前后比 f/b (db) |
≥20 | |
|
最大功率 max power(w) |
100 | |
|
阻抗 impedance(ω) |
50 | |
|
接头型号 connector |
n头或用户指定 n-female or user specified | |
|
重量 weight(kg) |
4.5 | |
|
尺寸 dimensions(mm) |
700×150×90 | |
|
天线罩材料 radome material |
fiberglass | |
