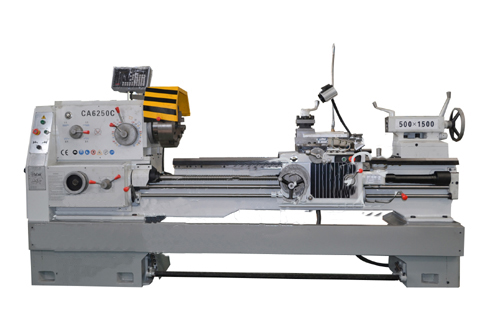

床身上最大工件直径Max.Swing over bed

500mm

刀架上最大工件直径Max.Swing over carriage

300mm

马鞍槽最大工件直径Max.Swing in gap

720mm -

马鞍槽有效长度Effective gap length

210mm -

最大工件长度Max length of bed

750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm

床身宽度Width of bed

400mm

刀杆洁面Section of turming tool

25×25mm

主轴

Spindle

主轴转速范围Spindle speeds

10-1400rpm/16-1400rpm(24 steps)

主轴内孔Hole through spindle

105mm

主轴孔锥度Spindle taper

莫氏NO.6(MT6)(φ90 1:20) [φ113 1:20]

进给

Feed

进给数量Number of feeds

64种(kinds)(for each)

公制螺纹Range of metric threads(kinds)

(1-192mm)44种（44 kinds）

英制螺纹Range of inch threads(kinds)

(2-24tpi)21种（21 kinds）

模数螺纹Range of module threads(kinds)

0.25-48(模数39种)（Module 39kinds）

径节螺纹Range of pitch threads(kinds)

1-96DP(37种)(37kinds）

尾座

Taistock

尾座主轴最大行程Max.tail stock spindle travel

150mm

尾座主轴直径Tail stock spindle diameter

75mm

尾座主轴孔锥度Taper of tail stock spindle center hole

莫氏NO.5(MT5)

主电机Main motor

7.5KW(10HP_

包装尺寸

Packing dimensins    (L*W*H)

Overall dimensions for 750mm

2550*1140*1750

Overall dimensions for 1000mm

2700*1140*1750

Overall dimensions for 1500mm

3200*1140*1750

Overall dimensions for 2000mm

3700*1140*1750

Overall dimensions for 2200mm

4030*1140*1750

Overall dimensions for 3000mm

4850*1140*1750

Overall dimensions for 4000mm

5800*1140*1750

重量

Weiight(kg)

Length

毛重净重

G.W  N.W.

Weight for 7500mm

2170  2060

Weight for 1000mm

2260 2140

Weight for 1500mm

2420 2290

Weight for 2000mm

2790 2640

Weight for 2200mm

2940 2790

Weight for 3000mm

3450 3300

Weight for 4000mm

3750 3600
