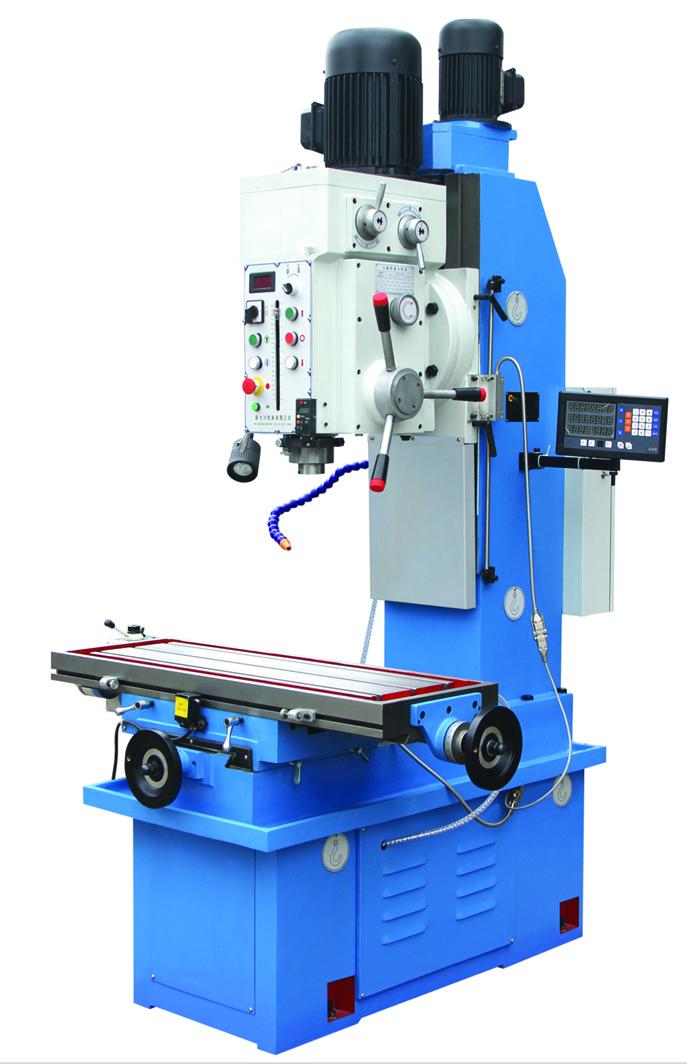

| 型号 | Model | ZX7150A钻铣床 | ZX7150A钻铣床 |
| 最大攻丝直径 | Tapping the largest diameter | 45mm | 45mm |
| 最大钻孔直径 | Maximum drilling diameter | 50mm | 50mm |
| 最大端铣直径 | Maximum milling diameter | 125mm | 125mm |
| 主轴中心至立柱的距离 | Distance of spindle center to column | 360mm | 360mm |
| 主轴端面至工作台面距离 | Spindle nose to table distance | 最小180mm 最大600mm | Minimum 180mm maximum 600mm |
| 主轴最大行程 | Spindle travel | 200mm | 200mm |
| 主轴锥孔 | Spindle taper hole | MT4 | MT4 |
| 主轴箱升降行程 | Spindle box lift travel | 420mm | 420mm |
| 主轴箱升降速度 | Vertical speed of the spindle box | 1250mm/min | 1250mm/min |
| 主轴箱最大回转角度 | Maximum turning angle of the spindle box | 正负45度 | Plus or minus 45 degrees |
| 主轴钻速范围 | Spindle drilling speed range | 38-1730r/min | 38-1730r/min |
| 主轴转速级数 | Number of spindle speeds | 12 | 12 |
| 主轴自动进给速度 | Spindle automatic feed rate | 0.1,0.2,0.3mm/r | 0.1,0.2,0.3mm/r |
| 主轴自动进给级数 | Spindle automatic feed to the series | 3级 | 3 Level |
| 刻度环每转进给量 | Scale loop per revolution feed | 102mm | 102mm |
| 工作台X向进给级数 | Workbench X to the feed series | 无级 | Stepless |
| 工作台X向进给量范围 | Workbench X to the feed range | 4-480mm/min | 4-480mm/min |
| 工作台X向快速移动速度 | Workbench X to the fast-moving speed | 640mm/min | 640mm/min |
| 工作台面积 | Table area | 350*1000mm | 350*1000mm |
| 工作台X/Y向行程 | Workbench X / Y to travel | 500*350mm | 500*350mm |
| 工作台T型槽尺寸 | T-slot table size | 3-14*100mm | 3-14*100mm |
| 主电机功率 | Power of main motor | 2.2,2.8KW(双速) | 2.2,2.8 KW (double speed) |
| 升价电机功率 | Motor power of the price rise | 0.75kw | 0.75kw |
| 冷却泵电机功率 | Cooling pump motor power | 0.09kw | 0.09kw |
| 工作台走刀器参数 | Workbench tool path parameters | 220v，20nm | 220v，20nm |
| 机床重量 | Weight of machine | 1300kg | 1300kg |
| 机床最大轮廓尺寸 | Maximum outline size of the machine | 1550*1580*2210mm | 1550*1580*2210mm |
